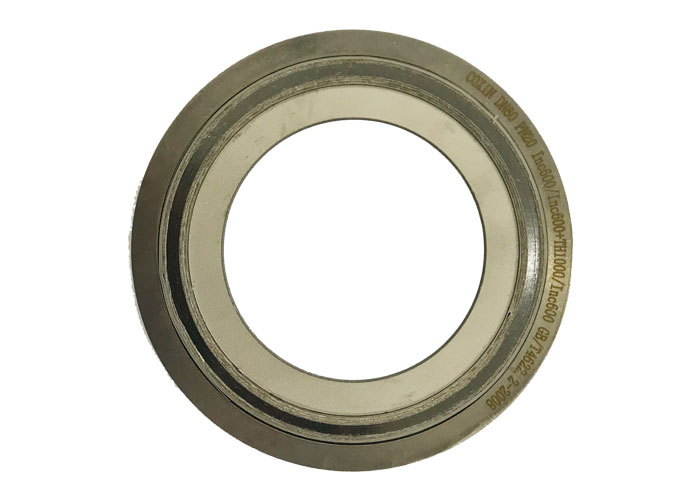

product detailscurrent location ： home > Product Center > product detailsHigh temperature resistant spiral wound gasket
Spiral wound gasket is made of V-shaped or W-shaped metal belt and non-metallic filler belt alternately overlapped, spiral wound, and end spot welding, and reinforcement ring can be added according to working conditions.
It is applicable to a wide range of working conditions. It can withstand high temperature, high pressure and the use conditions under ultra-low temperature or vacuum. By changing the material combination of the gasket, the chemical corrosion problem of the gasket caused by various media can be solved. Strong stress compensation capability. The sealing performance is stable and reliable at the station with frequent temperature and pressure fluctuations. The sealing performance is excellent. The requirements for the surface accuracy of the flange in contact with the gasket are not high. It is easy to install, and the pre tightening pressure of the gasket is low& nbsp;
- Product Description
Spiral wound gasket is made of V-shaped or W-shaped metal belt and non-metallic filler belt alternately overlapped, spiral wound, and end spot welding, and reinforcement ring can be added according to working conditions.
It is applicable to a wide range of working conditions. It can withstand high temperature, high pressure and the use conditions under ultra-low temperature or vacuum. By changing the material combination of the gasket, the chemical corrosion problem of the gasket caused by various media can be solved. Strong stress compensation capability. The sealing performance is stable and reliable at the station with frequent temperature and pressure fluctuations. The sealing performance is excellent. The requirements for the surface accuracy of the flange in contact with the gasket are not high. It is easy to install, and the pre tightening pressure of the gasket is low& nbsp;
Type
Code
Cross section
constitute
Apply to the flange
Basic type
A
It is formed by winding metal belt and filler belt
TG
With inner ring
B
Add metal inner ring on the basis of basic type
MF
With centering ring
C
Sleeve the outer ring on the basis of the basic type
FF or RF
Type with inner ring and centering ring
D
Add inner ring on the basis of centering ring type
FF or RF
Environmentally friendly
E
On the basis of the inner ring and centering ring type, the sealing ring is sleeved on the outer edge of the centering ring
FF
Performance table of non-metallic filler strip materials
Material
Temperature ℃
Pressure MPa
Medium
Abbreviation
Color Code
Flexible graphite
-196~650
oxidizing medium is not higher than 600）
0~25
High temperature, weak corrosivity
F.G.
Gray stripe
teflon
-196~260
0~10
Strong corrosivity
PTFE
White stripe
Non asbestos fibre
-50~250
0~10
General air tightness
NA
No Color
ceramic fiber
-150~1090
0~10
High temperature, poor air tightness
CER
Light green
Metal strip material performance table
Material
Temperature ℃
Abbreviation
Color Code
304SS
-196~760
304
Yellow
304LSS
-196~450
304L
No Color
316LSS
-196~450
316L
Green
347SS
-195~815
347
Blue
321SS
-196~815
321
Turquoise
Monel400
-130~815
MON
Orange
Titanium（T2）
-195~1090
TI
Purple
Duplex stainless steel2205
-40~300
2205
No Color
Inconel600
-100~1090
INC 600
Gold
Inconel625
-100~1090
INC 625
Gold
Inconel800
-100~870
IN 800
White
